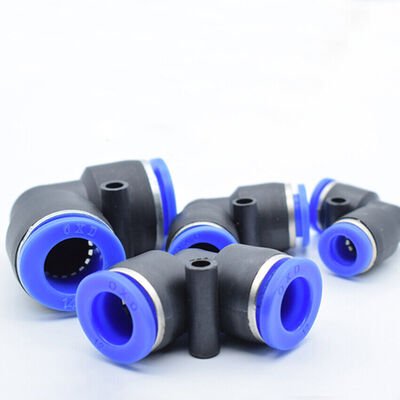

Product Specification: Pneumatic Elbow (16mm)
The pneumatic elbow is a vital component in pneumatic systems that enables the change in direction of air or gas flow by 90 degrees. With its precise design and robust construction, the pneumatic elbow ensures smooth and efficient operation in various industrial applications. Here are the specifications of the pneumatic elbow with a size of 16mm:
Size: The pneumatic elbow is specifically designed to fit 16mm pneumatic systems. It features a standardized 16mm outer diameter, ensuring compatibility and seamless integration with other components within the system.
Material: The elbow is constructed using high-quality materials to ensure durability and reliability in demanding industrial environments. Common materials used for manufacturing pneumatic elbows include brass and stainless steel, providing excellent resistance to corrosion and wear.
Connection Type: The pneumatic elbow employs a push-in fitting design, which allows for quick and secure connections. It utilizes a push-to-connect mechanism, enabling effortless installation and disconnection without the need for additional tools.
Operating Pressure: The pneumatic elbow is designed to withstand a wide range of operating pressures commonly encountered in pneumatic systems. The specific operating pressure may vary depending on the elbow model and the materials used in its construction. However, the typical operating pressure ranges between 0 to 10 bar (0 to 145 psi), making it suitable for various pneumatic applications.
Temperature Range: The pneumatic elbow is engineered to tolerate a broad temperature range, ensuring reliable performance across diverse operating conditions. Depending on the material used, the elbow can withstand temperatures ranging from -20°C to 80°C (-4°F to 176°F). This wide temperature tolerance allows for its use in a variety of industrial settings.
Angle: The 16mm pneumatic elbow is designed to provide a precise 90-degree change in direction. This allows for efficient routing and redirection of air or gas flow within the pneumatic system.
Compatibility: The 16mm pneumatic elbow is designed to be compatible with other standard pneumatic fittings and components. This ensures easy integration into existing pneumatic systems, enabling seamless modification or expansion of the system when required.
Application: The pneumatic elbow with a size of 16mm finds applications in numerous industries, including manufacturing, automation, automotive, packaging, and more. It is commonly used for redirecting the airflow around obstacles or changing the direction of pneumatic circuits to optimize space utilization and improve system efficiency.
Please note that it is essential to consult the manufacturer’s specifications and guidelines for precise details on the particular pneumatic elbow model you are considering. These specifications serve as a general overview and may vary depending on the manufacturer and specific product line.
The 16mm pneumatic elbow offers reliable and efficient directional change capabilities for pneumatic systems. Its durable construction, compatibility, and easy installation make it an ideal choice for a wide range of industrial applications where precise redirection of air or gas flow is required.
