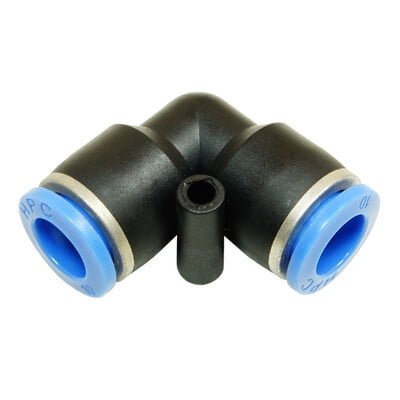

Product Specification: Pneumatic Elbow (12mm)
The pneumatic elbow is a crucial component in pneumatic systems that facilitates a 90-degree change in the direction of air or gas flow. Designed with precision and durability in mind, the pneumatic elbow ensures efficient operation in various industrial applications. Here are the specifications of the pneumatic elbow with a size of 12mm:
Size: The pneumatic elbow is specifically designed to fit 12mm pneumatic systems. It features a standardized 12mm outer diameter, ensuring compatibility and seamless integration with other components within the system.
Material: The elbow is constructed using high-quality materials to ensure durability and reliable performance. Commonly used materials for manufacturing pneumatic elbows include brass and stainless steel, providing excellent resistance to corrosion and wear.
Connection Type: The pneumatic elbow employs a push-in fitting design, allowing for quick and secure connections. It utilizes a push-to-connect mechanism, facilitating effortless installation and disconnection without the need for additional tools.
Operating Pressure: The pneumatic elbow is designed to withstand a wide range of operating pressures commonly encountered in pneumatic systems. The specific operating pressure may vary depending on the elbow model and the materials used in its construction. However, the typical operating pressure ranges between 0 to 10 bar (0 to 145 psi), making it suitable for various pneumatic applications.
Temperature Range: The pneumatic elbow is engineered to tolerate a broad temperature range, ensuring reliable performance in diverse operating conditions. Depending on the material used, the elbow can withstand temperatures ranging from -20°C to 80°C (-4°F to 176°F). This wide temperature tolerance allows for its application in various industrial settings.
Angle: The 12mm pneumatic elbow is designed to provide a precise 90-degree change in direction, enabling efficient routing and redirection of air or gas flow within the pneumatic system.
Compatibility: The 12mm pneumatic elbow is designed to be compatible with other standard pneumatic fittings and components. This ensures easy integration into existing pneumatic systems, enabling seamless modification or expansion of the system as required.
Application: The pneumatic elbow with a size of 12mm finds applications in a wide range of industries, including manufacturing, automation, automotive, packaging, and more. It is commonly used for redirecting the airflow around obstacles or changing the direction of pneumatic circuits, optimizing space utilization and enhancing the overall efficiency of the system.
Please note that it is essential to refer to the manufacturer’s specifications and guidelines for precise details on the specific pneumatic elbow model you are considering. The specifications provided above serve as a general overview and may vary depending on the manufacturer and specific product line.
The 12mm pneumatic elbow offers reliable and efficient directional change capabilities for pneumatic systems. Its durable construction, compatibility, and easy installation make it an ideal choice for a variety of industrial applications where precise redirection of air or gas flow is required.
